Command Center System
Command centers is the place where information from multiple sources is centralized and analyzed to facilitate real-time decision-making and to promptly respond to any situation.
Control Console
Command. Monitor. Control.

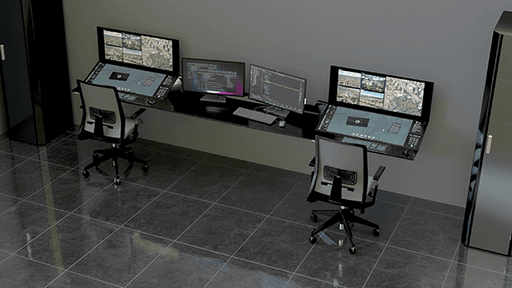

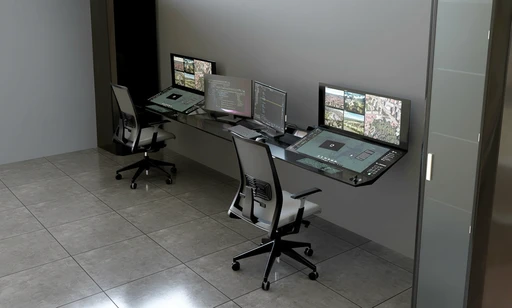

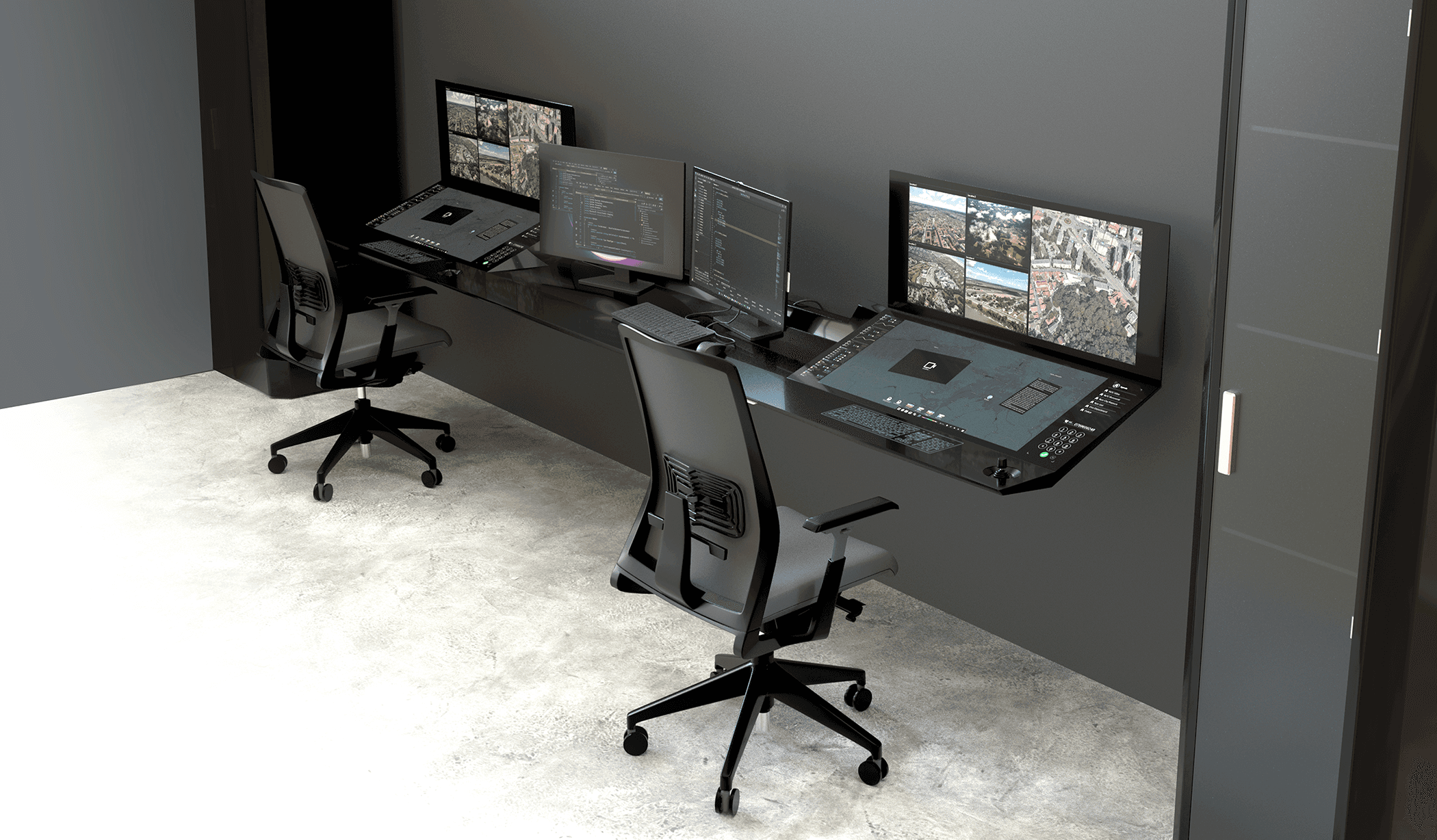

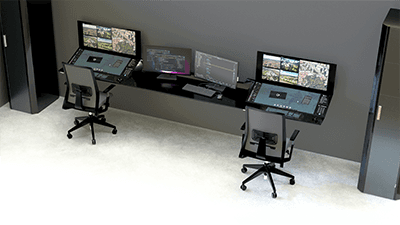

Introducing the ultimate Command and Control Console, engineered for seamless, continuous monitoring and rapid operational deployment. This powerhouse system centralizes all critical functions—data, video, and commands—into one robust platform.
Equipped with four high-resolution displays, intuitive multi-touch control, and integrated SIP communication, it puts you in complete charge. For mission-critical tasks, the precision joystick input ensures reliable and precise camera control.

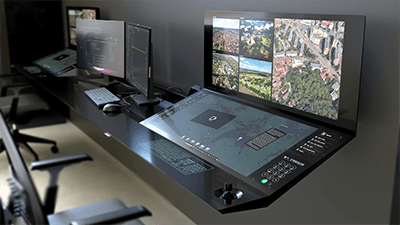

The first display handles live surveillance and drone camera feeds. The second is a multitouch display running a dedicated custom application, designed to monitor real-time data, manage resources, and control system functions efficiently.
The third hosts a virtual keyboard interface, while the fourth is dedicated to SIP telephony. A precision joystick completes the system, enabling intuitive and responsive control across all connected devices.
DISPLAY 1
5120 ✕ 2160
Live surveillance &
drone feeds
DISPLAY 2
5120 ✕ 2160
Multitouch for
operational control
3
3840 ✕ 1100
Virtual
keyboard
4
1100 ✕ 3840
SIP
telephony
Specifications
DISPLAY 1
Screen size
34 inches
Type
LCD
Resolution
5120 × 2160
Viewing angle
178°
Luminance (White)
450 cd
Secure Glass
3 mm
Glass Bonding
OCR technology
Scan Rate
60 Hz
Surface treatment
Low reflective treatment of the front polarizer (3H)
Touch
ITO Technology, 10 multi-touch points, +1.5 mm accuracy, 10 mm finger separation
DISPLAY 2
Screen size
34 inches
Type
LCD
Resolution
5120 x 2160
Viewing angle
178°
Luminance (White)
450 cd
Secure Glass
3 mm
Glass Bonding
OCR technology
Scan Rate
60 Hz
Surface treatment
Low reflective treatment of the front polarizer (3H)
Touch
No
Display 3: SIP TELEPHONY
Screen size
14 inches
Type
LCD
Resolution
1100 x 3840 px
Viewing angle
170°
Luminance (White)
300 cd
Secure Glass
3 mm
Glass Bonding
OCR technology
Scan Rate
60 Hz
Surface treatment
Low reflective treatment of the front polarizer (3H)
Touch
ITO Technology, 10 multi-touch points, +1.5 mm accuracy, 10 mm finger separation
Display 4: VIRTUAL KEYBOARD
Screen size
14 inches
Type
LCD
Resolution
3840 x 1100
Viewing angle
170°
Luminance (White)
300 cd
Secure Glass
3 mm
Glass Bonding
OCR technology
Scan Rate
60 Hz
Surface treatment
Low reflective treatment of the front polarizer (3H)
Touch
ITO Technology, 10 multi-touch points, +1.5 mm accuracy, 10 mm finger separation
System
Video card
Radeon 8060S Graphics • 40-core RDNA 3.5 architecture
Camera full HD
Integrated
Processor
AMD Ryzen™️ AI Max+ 395 • 16 cores / 32 threads • TSMC 4nm FinFET process • Up to 5.1 GHz (MAX)
RAM Memory
Onboard LPDDR5X 64GB
Internal SSD storage
256 GB
Speakers
Integrated
Connectors Interface
1 × USB-A 3.2 Gen2, 1 x type C
Operating System
Windows 11 IoT
Integrated Power supply
Input: 110-230V, 50-60Hz; Consumption: Average 150W
Touch
ITO Technology, 10 multi-touch points, +1.5 mm accuracy, 10 mm finger separation
Joystick
3-axis camera control (gimbal)
Smart card
Java Card
Software platform designed to detect and monitor early-stage wildfires, coordinate response strategies, and manage active operations — from assigning drones and fire-suppression vectors to tracking their real-time performance, while enabling seamless audio-video communication between systems.
All in One OLED 55’’ 4K
Meet the Interactive Multi-Touch Table, where cutting-edge design meets unparalleled performance. Designed for a truly intuitive experience, this system looks slim and ergonomic while being uniquely responsive. At its core, this All-in-One unit features a powerful computer seamlessly integrated with a vibrant 55-inch UHD OLED multi-touch display, ensuring high-speed capabilities and flawless operation every time.
maximize
maximize
Designed for ultimate speed and stability.
This ergonomic product is exceptionally fast and highly responsive, guaranteeing flawless, long-term performance.
Highly versatile, interactive multi-touch tables are shaping the future of command and control. Their advanced capabilities and intuitive design deliver unprecedented operational fluency.
Seamlessly aggregating data from multiple sources, the system instantly transforms it into clear visualizations. This delivers a unified, real-time operational picture, enabling swift, decisive action.
In emergency situations, the agility of multitouch tables empowers responders to adapt quickly, track evolving scenarios, and allocate resources effectively.
Their collaborative interface fosters teamwork, enabling dynamic exchanges of ideas and streamlined coordination during crises.
Beyond crisis management, these tables serve as invaluable tools for training and simulation exercises.
Dimensions:
180mm ×
80mm ×
44mm
Active area:
55 inch
Slim Design
Secure Glass:
4mm
Resolution:
3840 × 216O
Multi-Touch
points:
20
Processor: AMD Ryzen™️ AI Max+ 395
Storage:
258GB
Specifications
Dimensions
External dimensions
1806mm × 806mm × 44mm
Table support dimensions
1855mm × 840mm × 30mm
LCD
Technology
OLED
Viewing angle
178
Size
55 inch
Resolution
3840 × 2160 (UHD / 4K)
Luminance, White
350cd
Life Expectancy
60,000 hours
Secure Glass
4 mm
Glass Bonding
OCR technology
Scan Rate
60 Hz
Touch
Technology
ITO
Number of Multi-Touch Points
20
Multi-Touch Accuracy
±1.5mm
Finger Separation
10 mm
Processor
Processor
AMD Ryzen™️ AI Max+ 395 • 16 cores / 32 threads • TSMC 4nm FinFET process • Up to 5.1 GHz (MAX)
Memory
RAM memory
Onboard LPDDR5X 64GB
Graphics
Video card
Radeon 8060S Graphics • 40-core RDNA 3.5 architecture
Storage
Internal SSD storage
256GB
Speakers
Integrated
Connectors Interface
USB
1 × USB-A 3.2 Gen2 1 × type C
HDMI
1
RJ45
1
Integrated Power supply
Input
110−230 V, 50−60 Hz
Consumption
Average 150W
Operating System
Windows 11 IOT
