Surveillance VTOL
Surveillance VTOL
Long endurance, IR + laser.

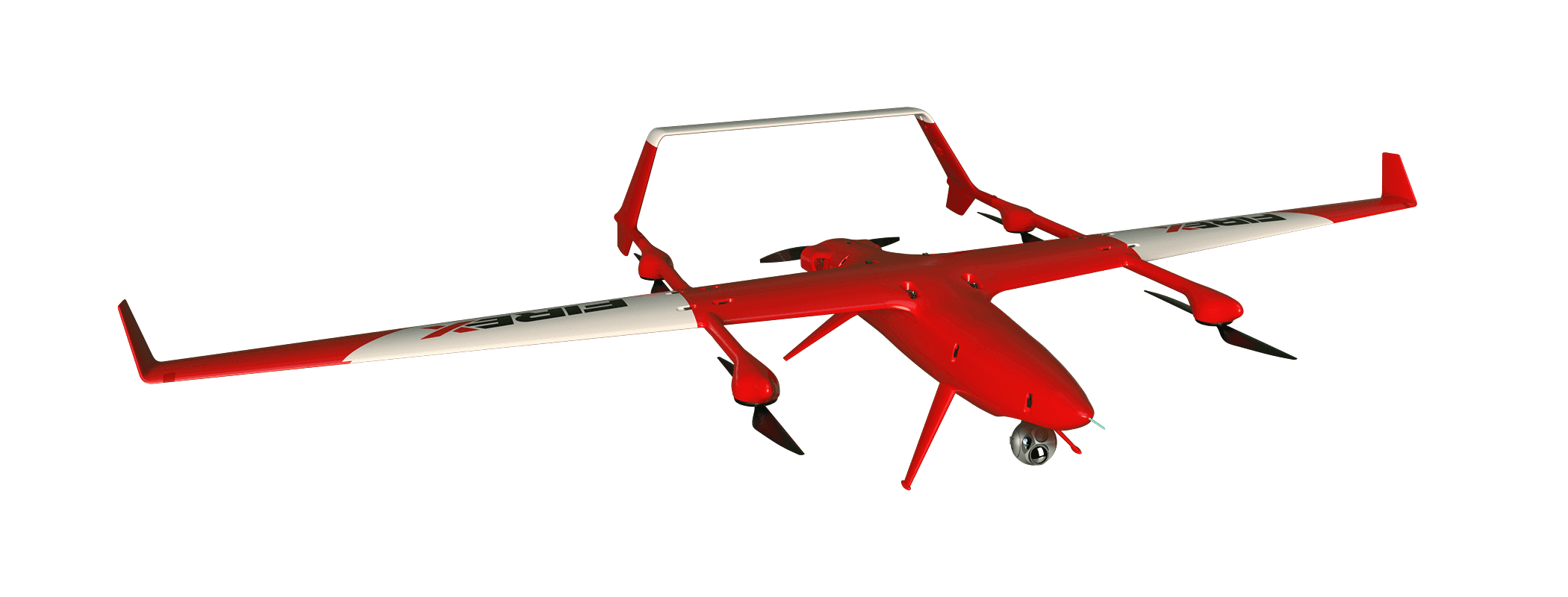

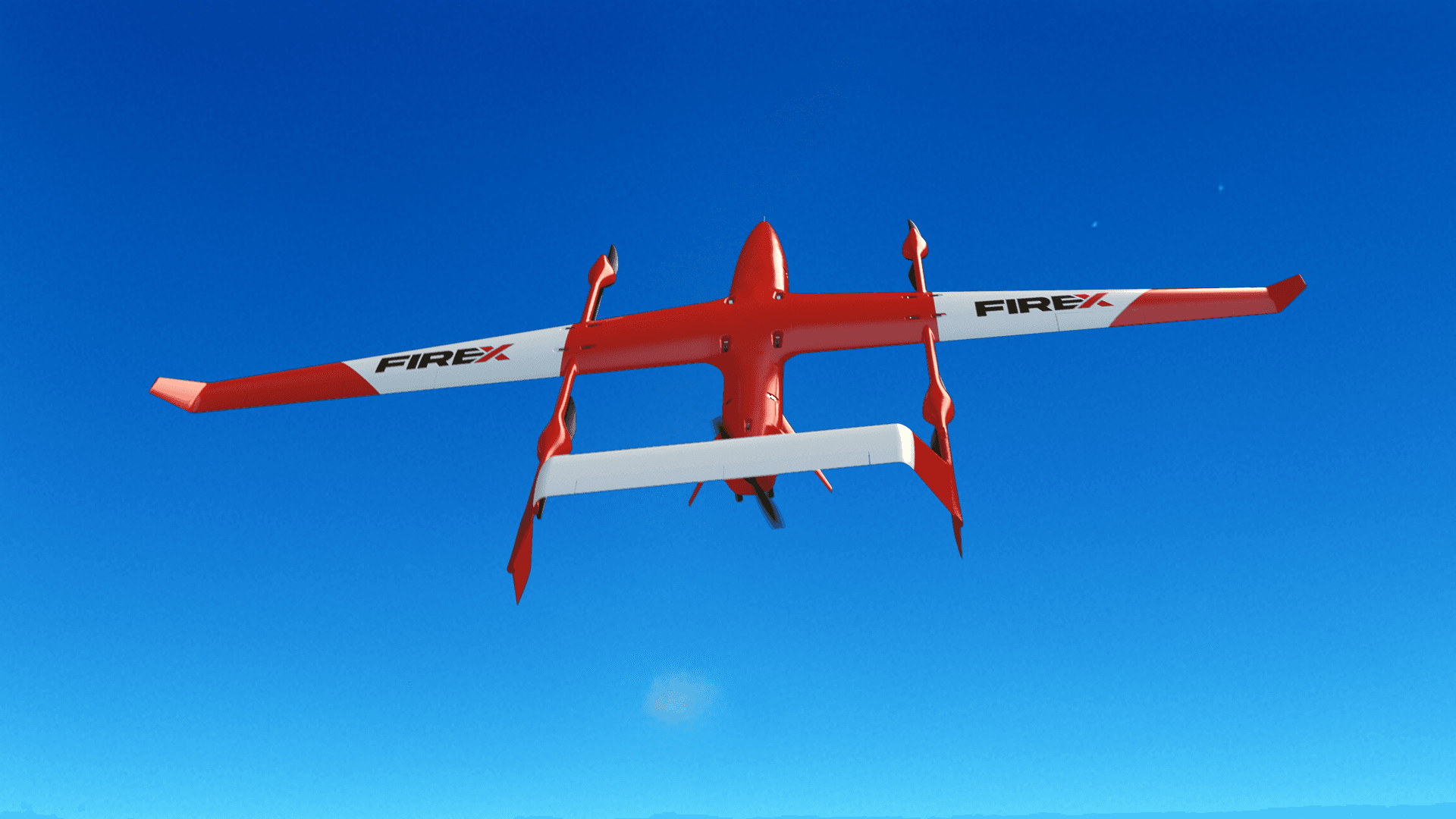

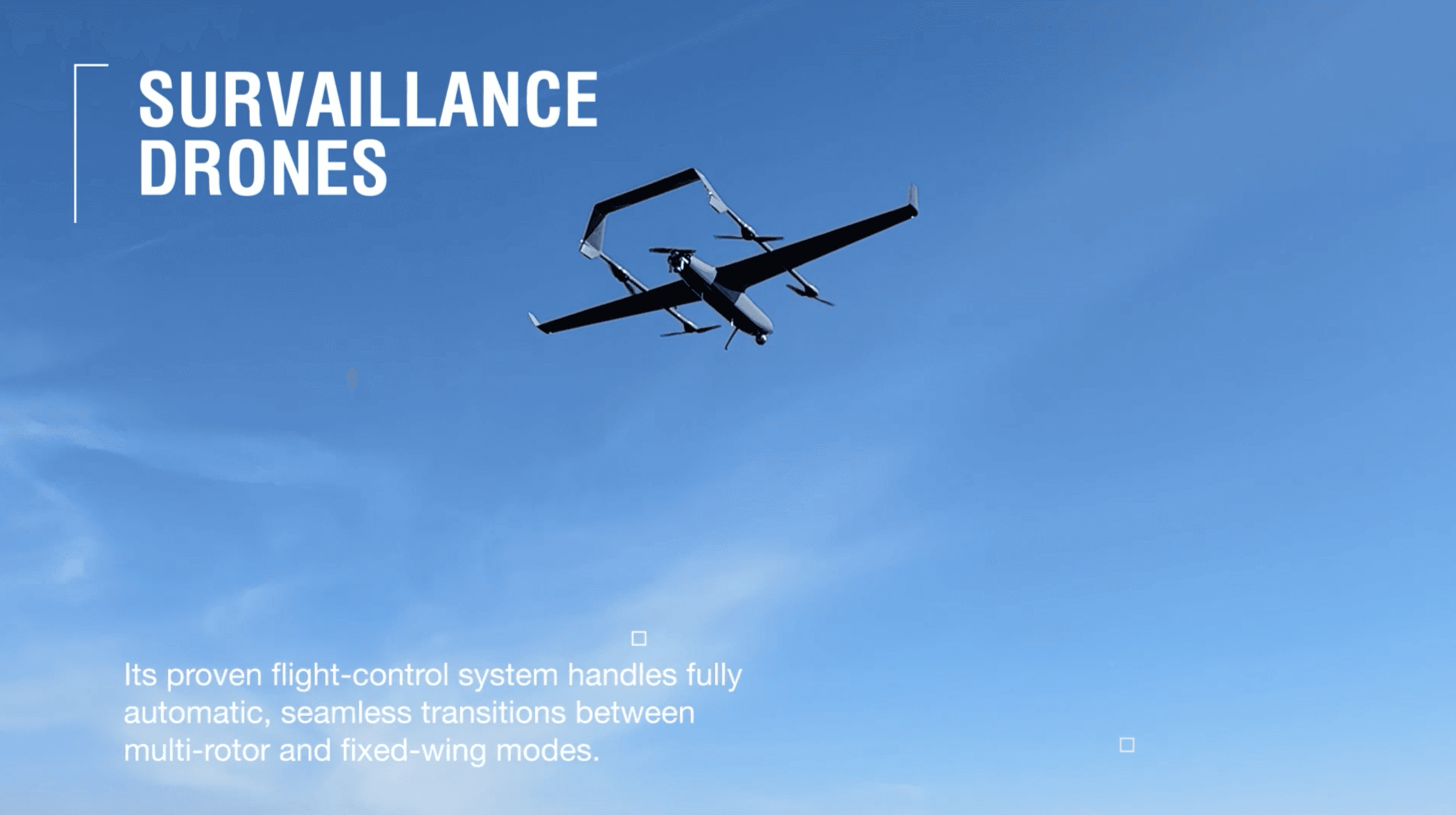

The CGT500 is a hybrid with both electric and gasoline version VTOL fixed wing UAV with the mature flight control system technology which can be freely switche between multi-rotor and fixed-wing modes automatically.
It’s wildly used in reconnaissance, emergency rescue, forest fire detection.

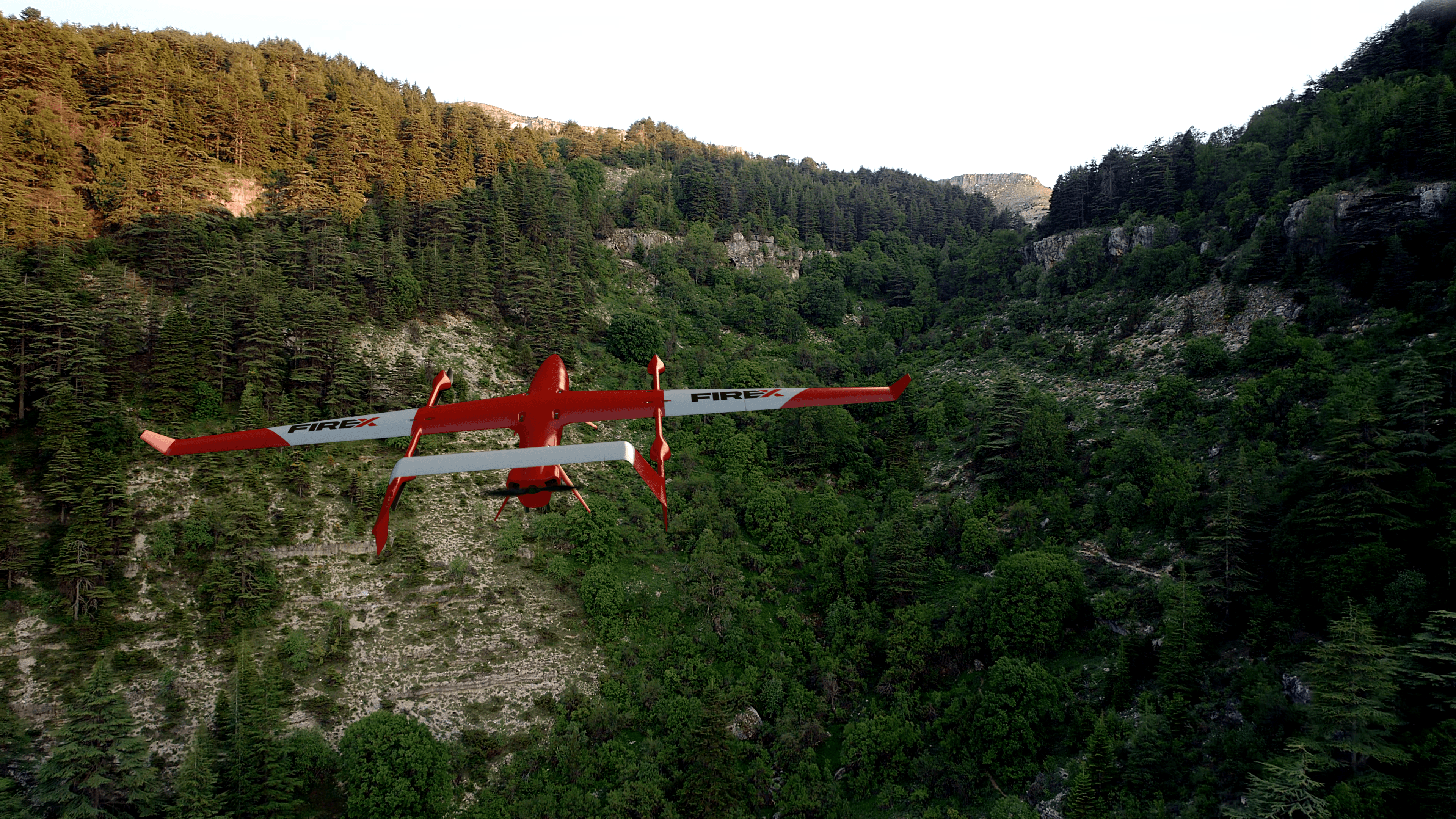

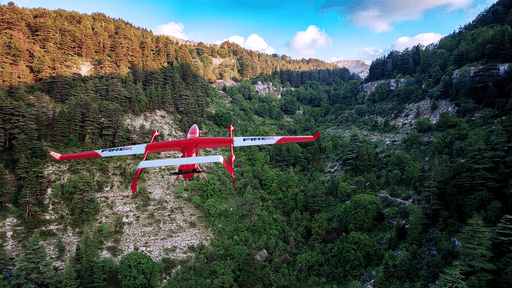

Equipped with advanced sensors and cameras are capable of patrolling large expanses of land with unprecedented speed and agility, scanning for signs of fire outbreak or smoke.
Reaching where humans can’t. Their ability to access areas that are otherwise difficult or dangerous for humans to reach makes them invaluable assets in the fight against wildfires.
The true power of these drones lies not just in their ability to collect data, but in their seamless integration with multitasking command centers.
Function of Manual Flight
Function of Mission Planning
Function of Low Power Retur
Capability of Emergency Retur
UAV maximum take-off weight is 60 kg (ISA, sea level), it has the following performance:
Item
Performance
Ceiling
4500m
Max flight speed
110km/h 59.45 knot
Cruise speed
85km/h 45.9 knot
Climbing rate
3 - 7m/s
MTOW
60 kg
Max. Load
20 kg
Operational range of LOS data link
100 km
Max Endurance
12 h ( load 0 kg ) - 3 h ( load 10 kg )
Engin
2 Stroke EFI Engine
Positioning system
GPS/GLONASS/BEIDOU
Note: The maximum endurance and maximum range can only be achieved under the economic cruise condition: cruise altitude 100m, cruise speed 85km/h, zero payload, wind resistance less than 3m/s.
